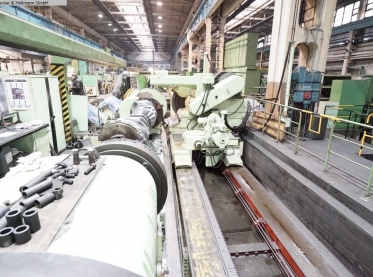

TOS - Crankshaft Grinding Machine Stock-No. 02885
Offer details
Stock-No.
02885 Type of machine

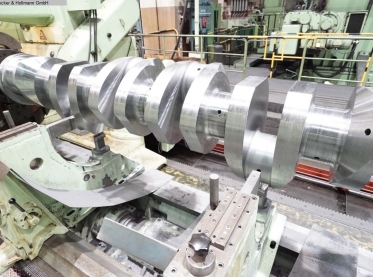

Crankshaft Grinding Machine Make
TOS Type
BKD 130 Year of manufacture
1965 Type of control
konventionell
Technical details
workpiece length
5000 mm swing dia.
1300 mm clamping length
1000 - 5000 mm centre distance
1000 - 5000 mm excentricity
0 - 260 mm grinding spindle head / power capacity
32 kW speeds of grinding spindle
377 U/min total power requirement
64 kW weight of the machine ca.
122 t dimensions of the machine ca.
15,96 x 8 x 2,5 m
additional information
- very good condition - still under power in the production company
-
- Equipment:
- - max. grinding-Ø at grinding wheel Ø 1600 mm: 600 mm
- - min. grinding-Ø at grinding wheel worn to Ø 1200 mm: 30 mm
- - grinding wheel normal: Ø 1600 mm x width 140 mm x bore 1000 mm
- - tailstock: 280 mm
- - min. swing-Ø in tailstock: 125 mm
- - max. flange-Ø of crankshaft for clamping: 550 mm
- - max. journal-Ø of crankshaft for clamping: 265 mm
- - max. Ø of centering bandring at flange: 300 mm
- - max. weight of ground workpiece: 4000 kg

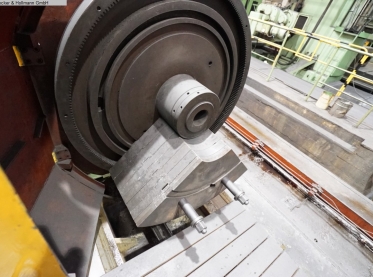

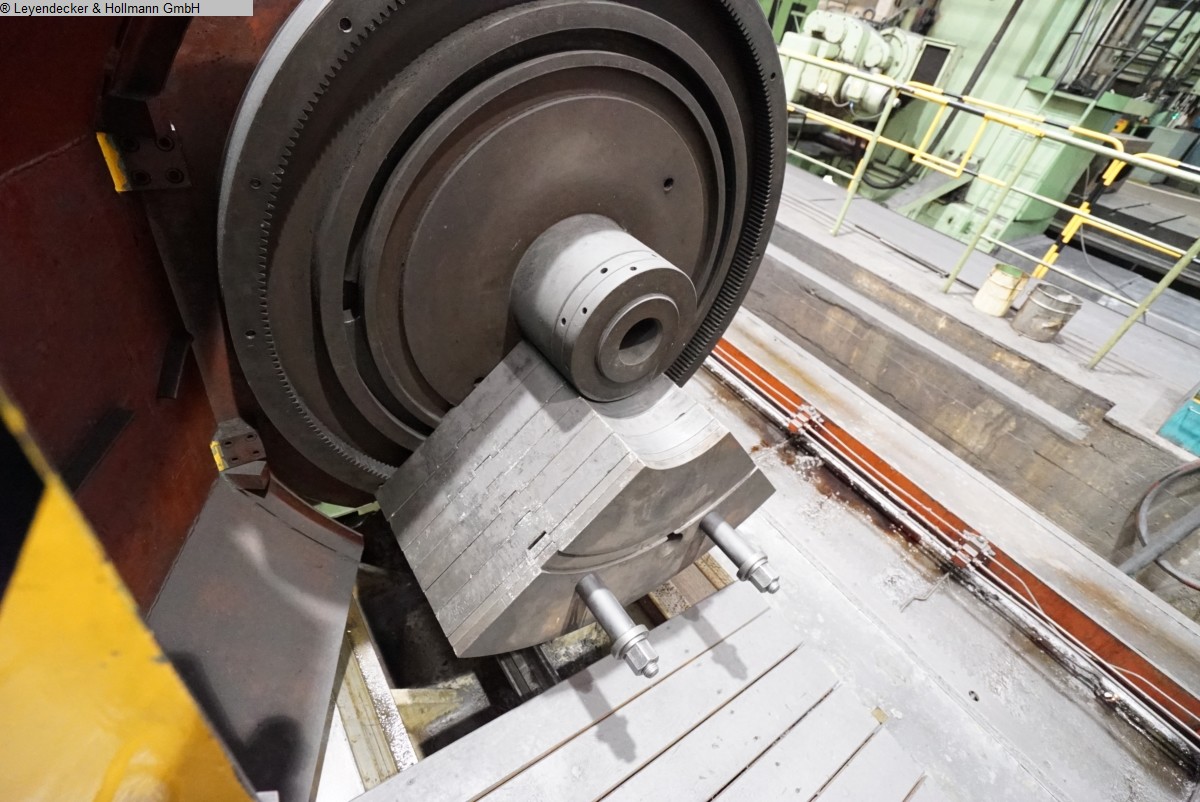

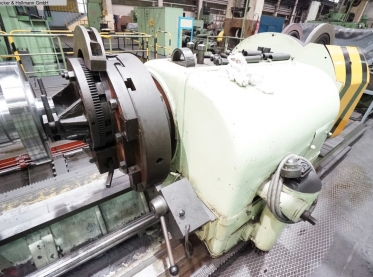

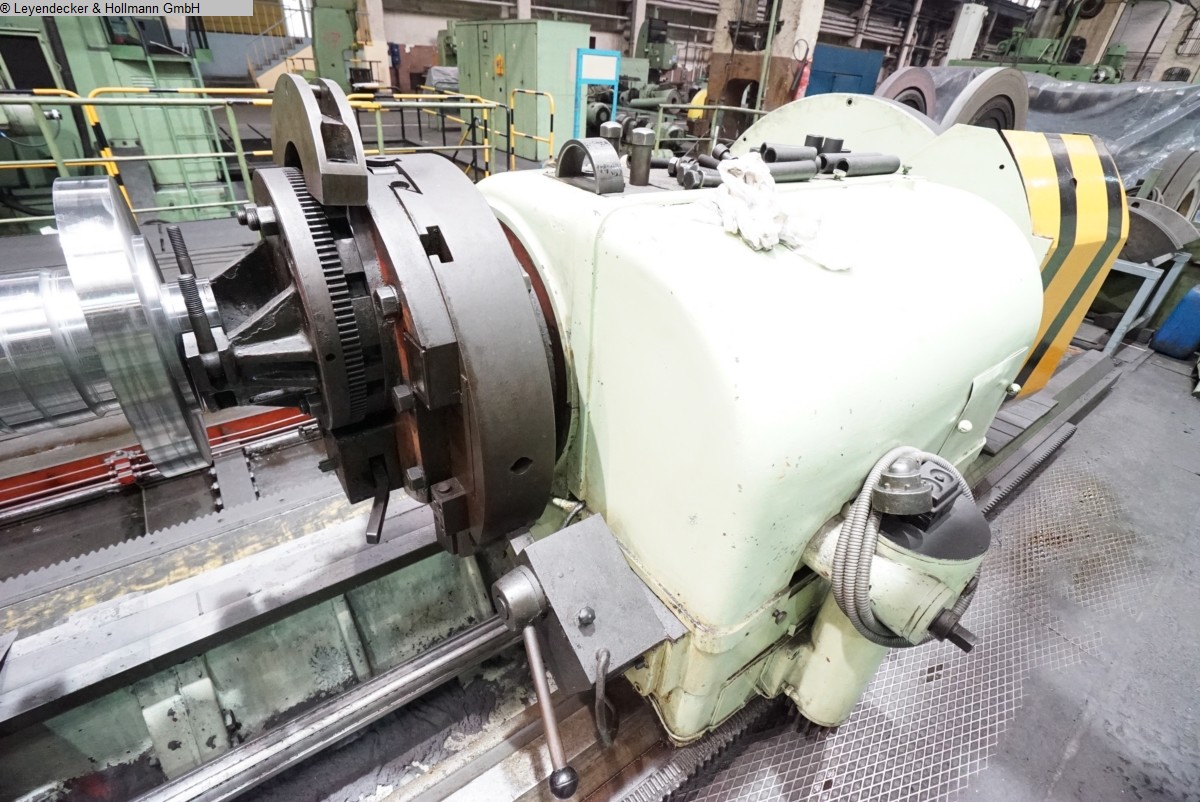

- - spindle speed of workpiece spindle heads, stepless: 5 - 50 rpm
- - max. longitudinal travel of slide: 7530 mm
- - cross travel of grinding spindle head: 545 mm
- - hydraulical rapid adjustment of grinding spindle head: 350 mm
- - damper stroke of hydraulical adjustment: 100 mm
- - slide speed when grinding, stepless: 195 - 1950 mm/min
- - slide speed when dressing, stepless: 19 - 195 mm/min
- - speed of adjustment by motor of grinding spindle head: 100 mm/min
- - speed of self-acting feed of ginding spindle head
- when plunge grinding: 0.025 - 3 mm per Ø/min
-
- Accessories:

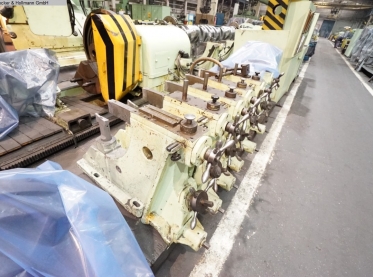

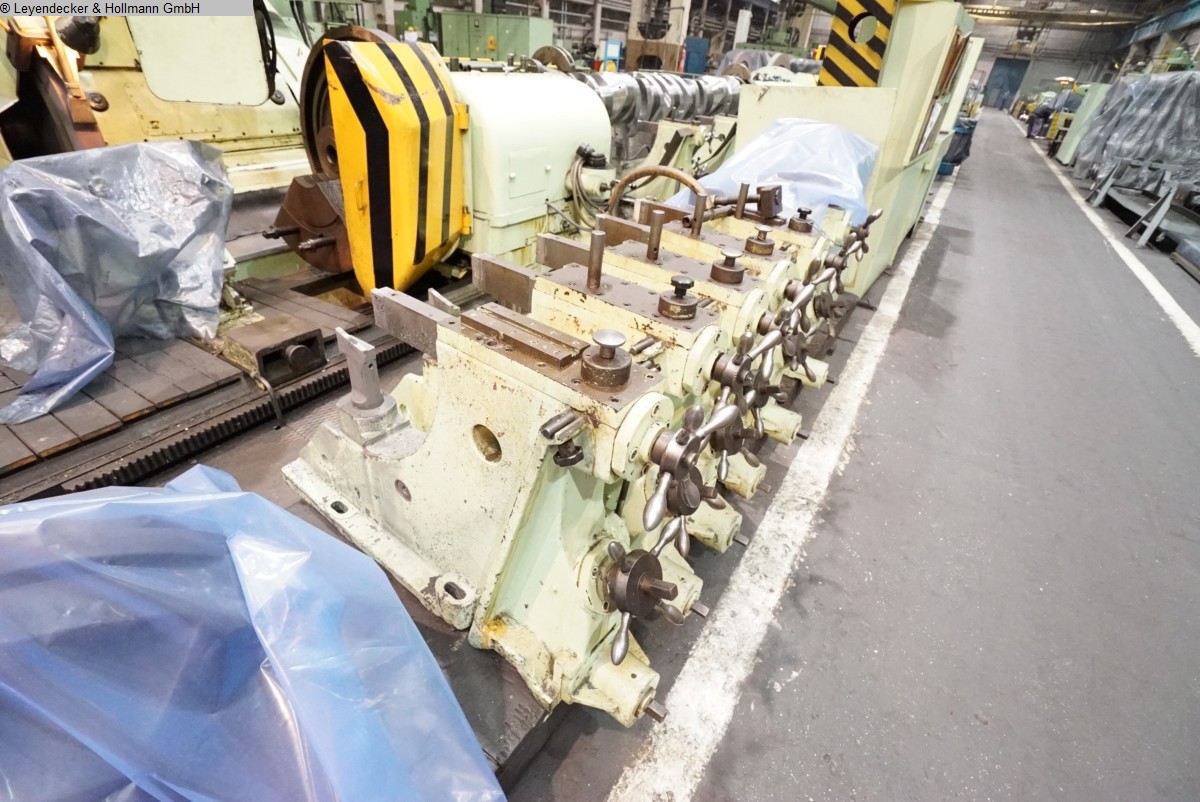

- - div. steadies

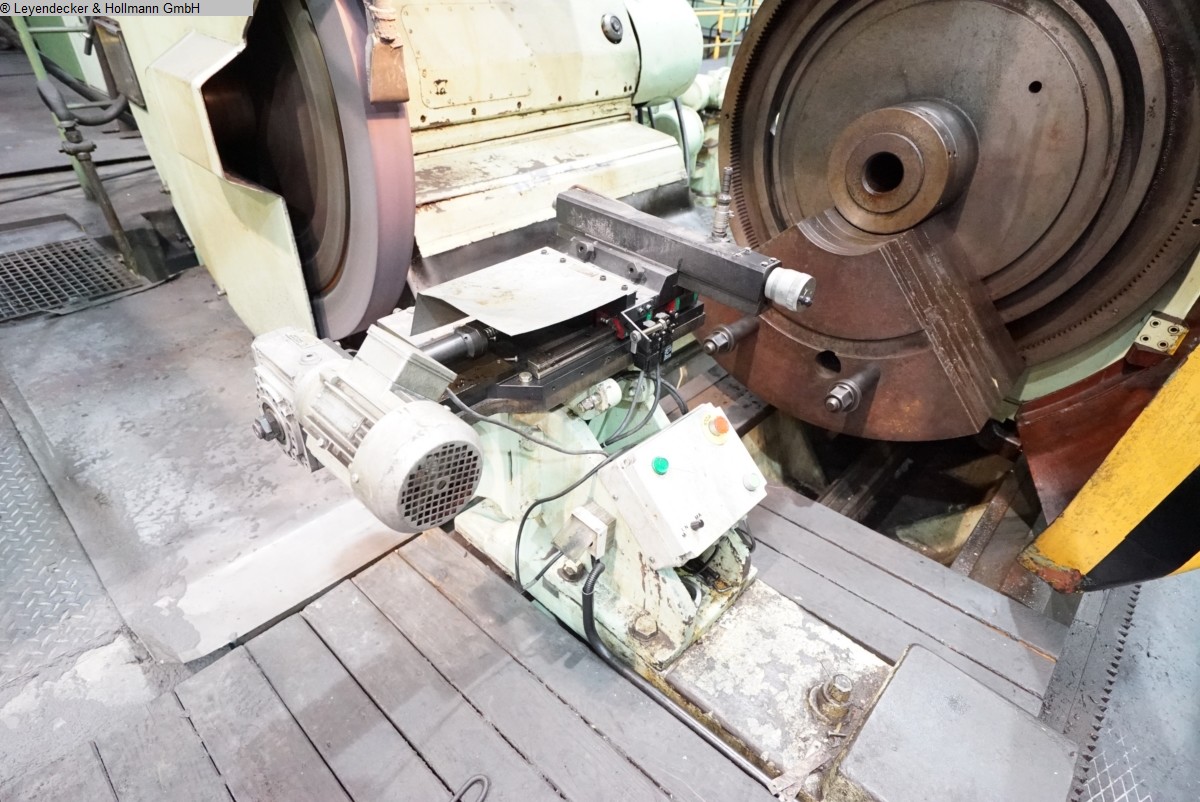

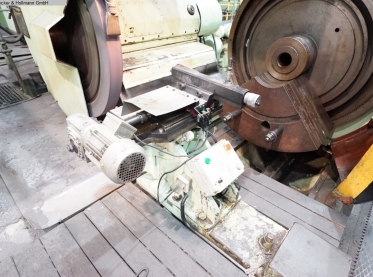

- - dressing device

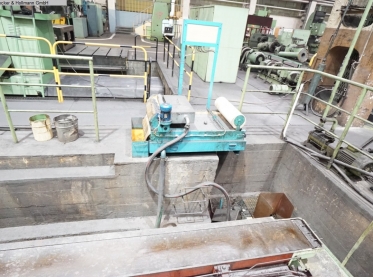

- - coolant devic
- - documentation
-
-
